Color Separation Process

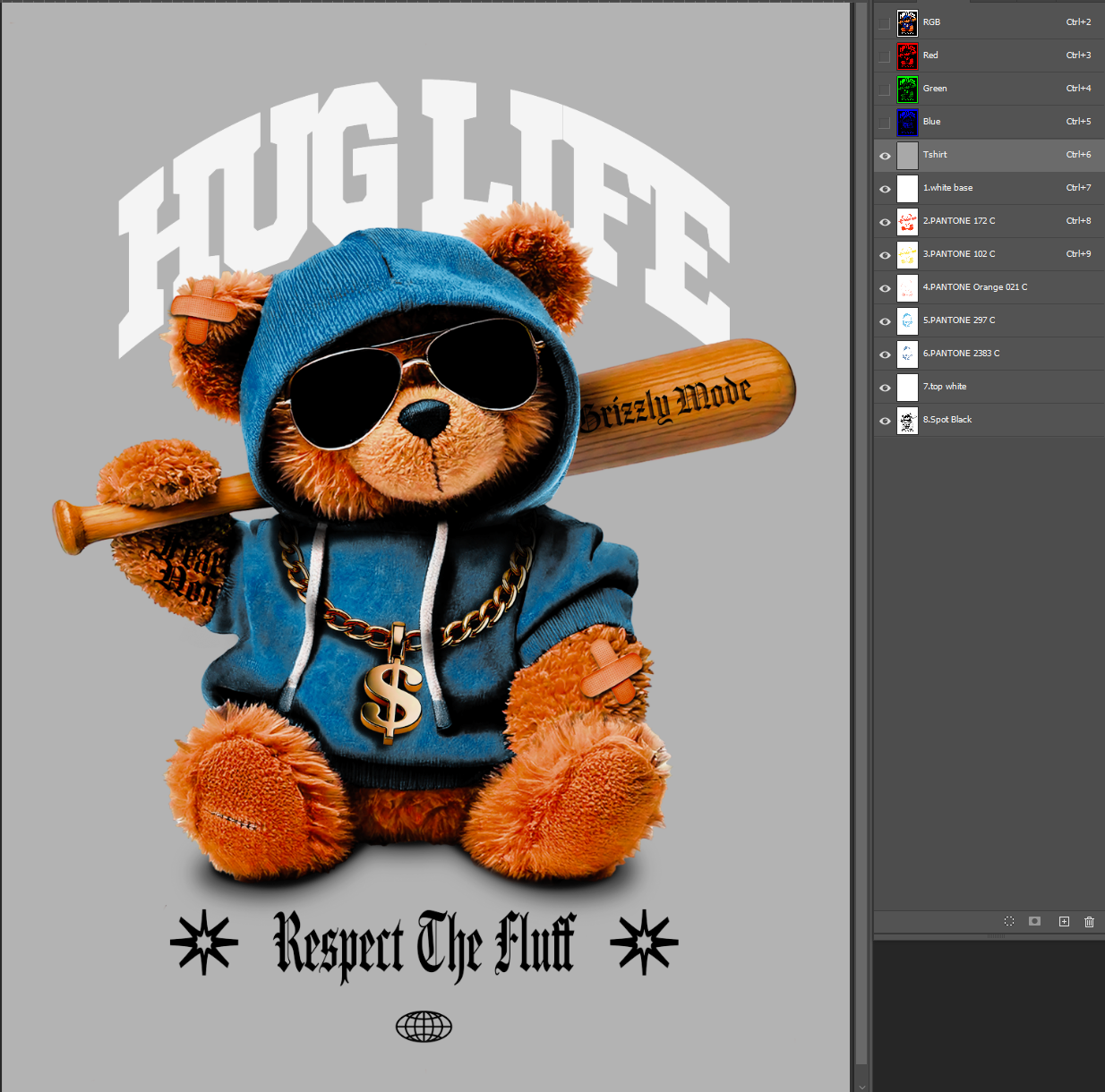

oryginal design / print black / print white
gradient raster
oryginal design on front

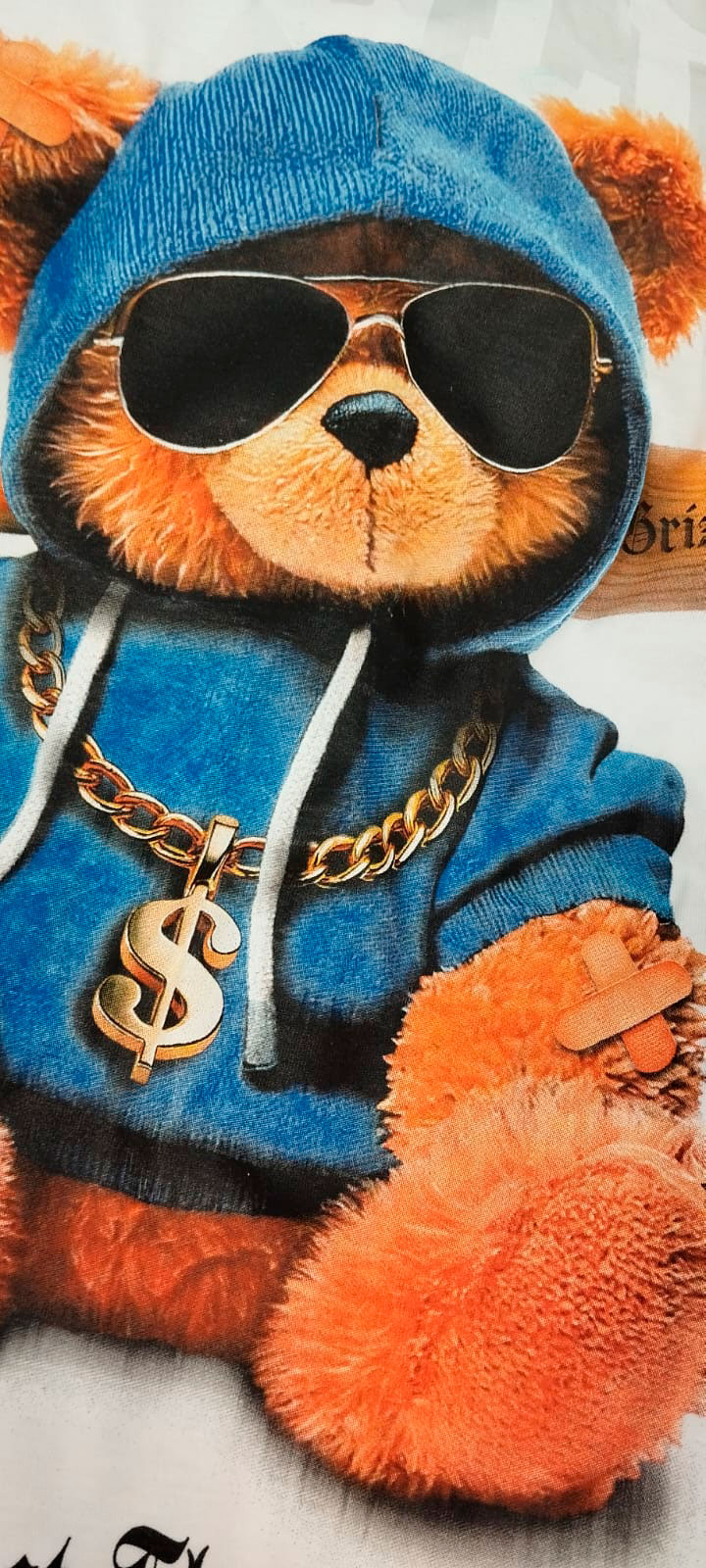

final print
gradient raster
oryginal design on back

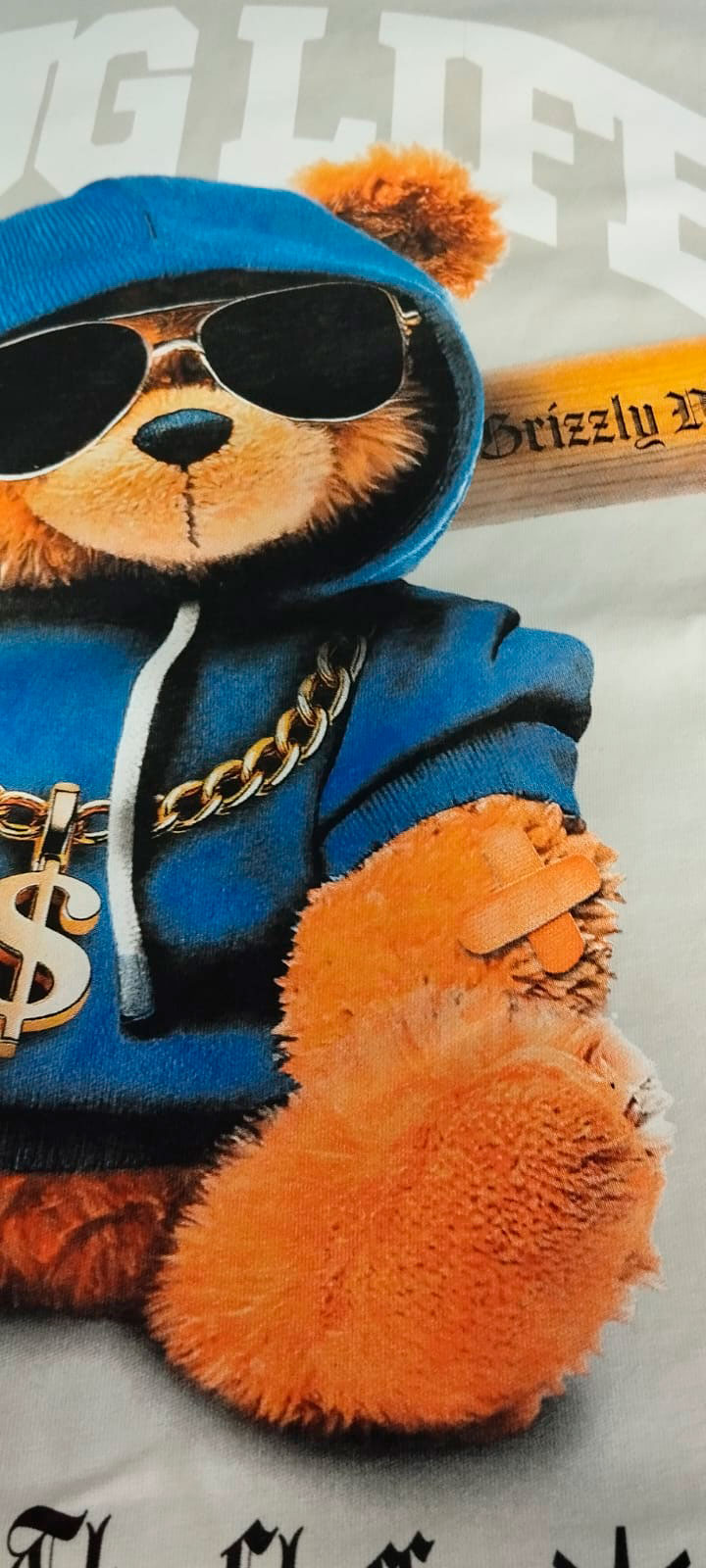

gradient raster print

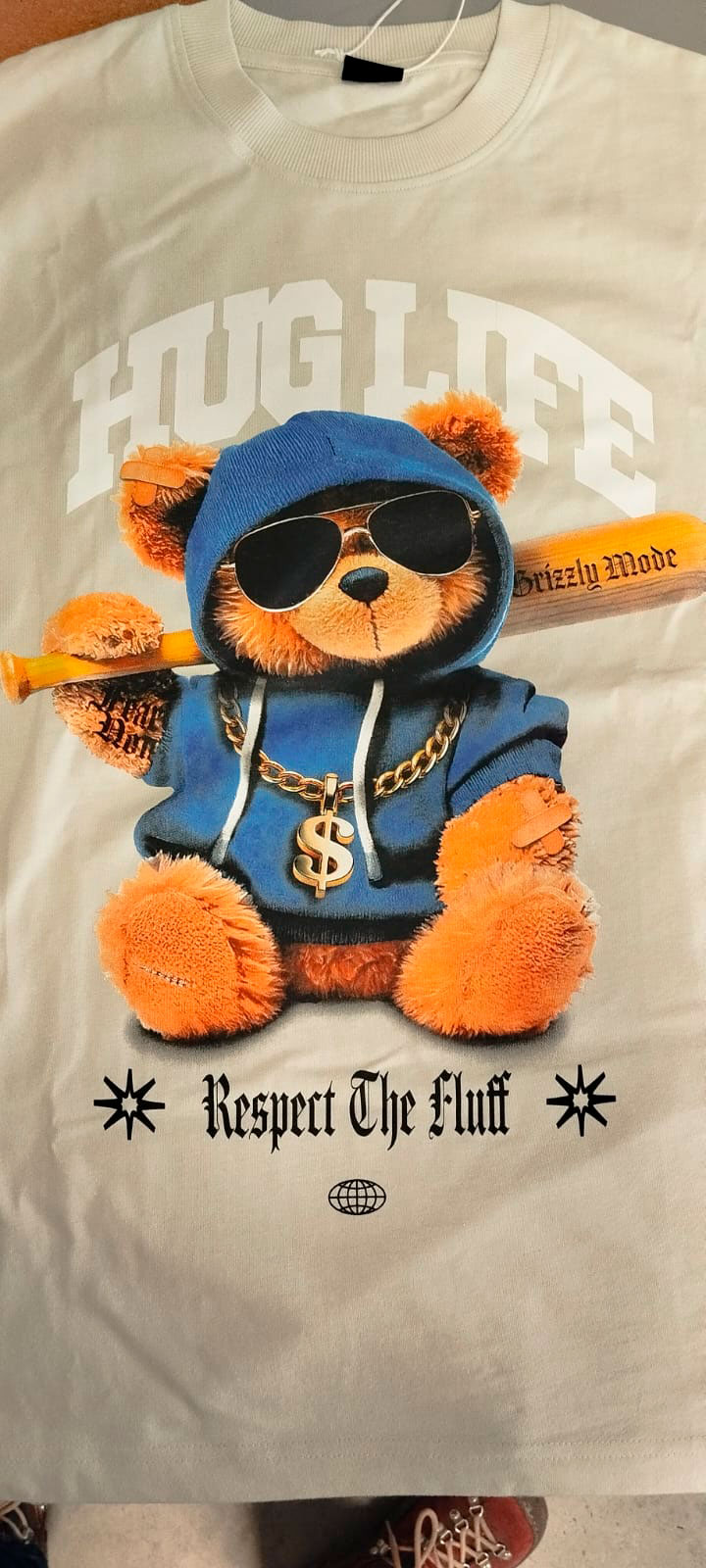

final print
oryginal design on black

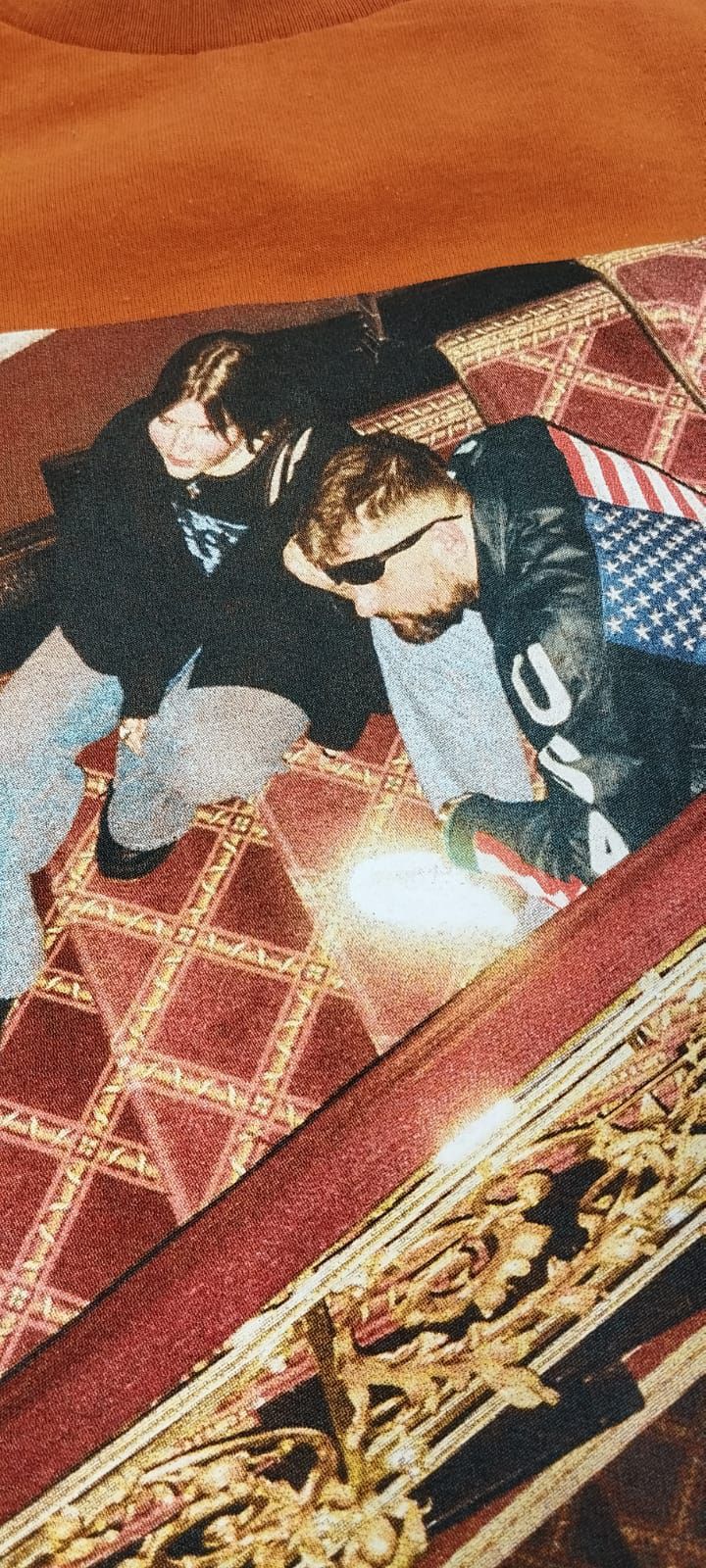

print on black
oryginal design on white

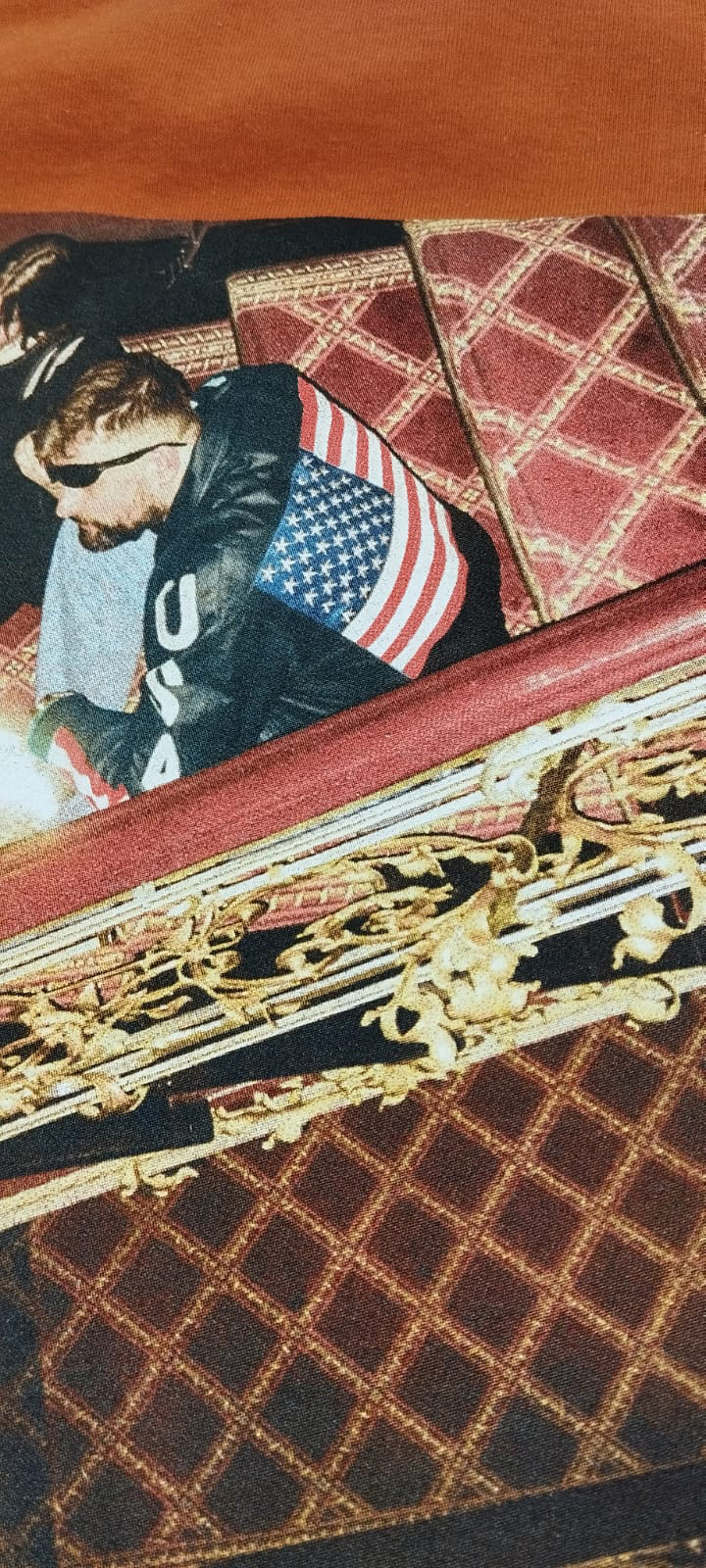

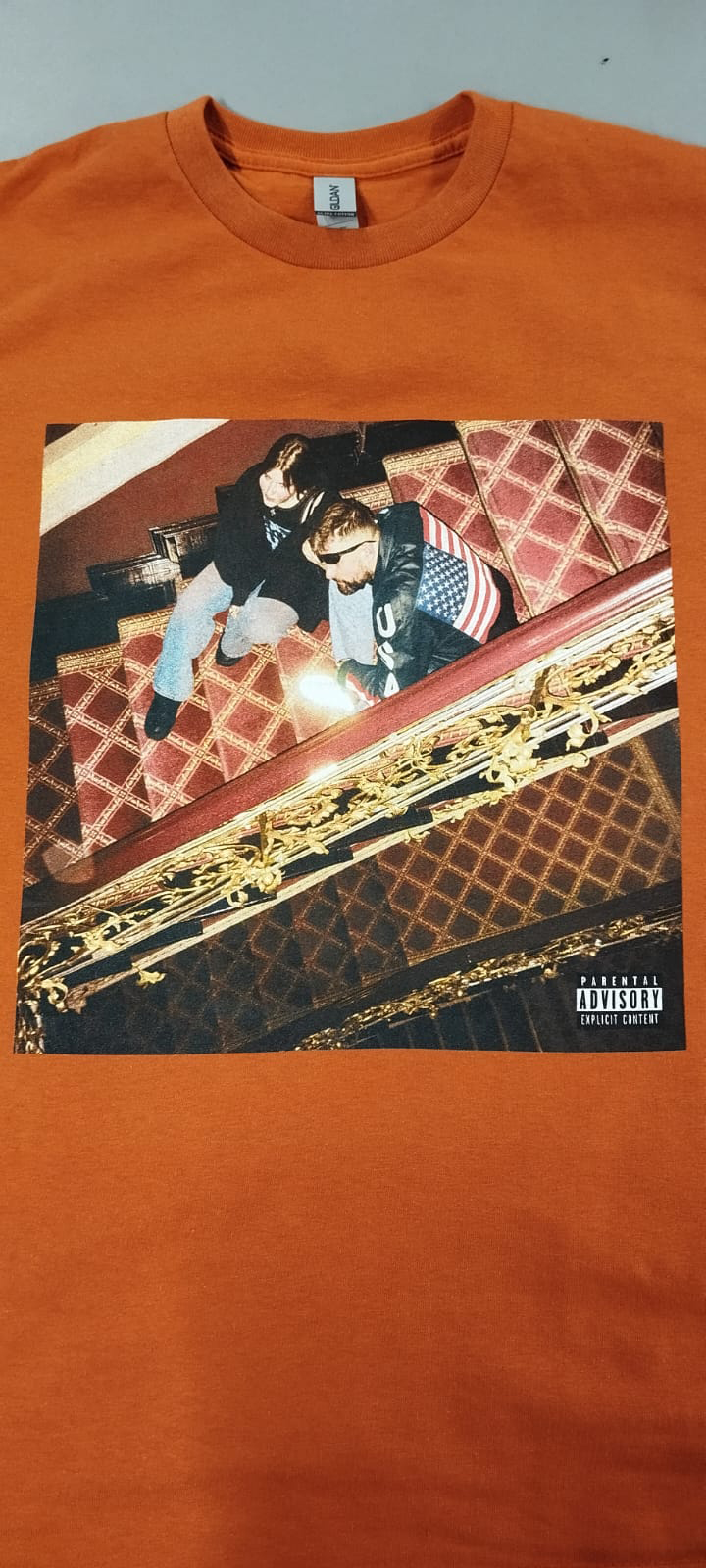

print on white
The story of Spooky Paintball design

Spooky Paintball, a new design I received from my client to prepare, turned out quite challenging. The design has been pre-rasterized in low lines count, and the colors were offset, making it hard to separate. The client had the possibility to print only 7 colors, so I had to reduce their number. I prepared two versions to choose which will look better.
One where the design is without a last white which gave me one additional color. The second where is one color less in order to print a last white. The client chose the first version. He printed the version with more colors but didn’t print the black.

color separation process
oryginal design
color separation process
reduced the number of colors to 7
color separation process
reduced the number of colors to 6
color separation process
printed design
color separation process
9 colors print
color separation process
9 colors separation
color separation process
8 colors wet on wet without white underbase on the cotton bags

This is the original design received from my customer from the USA. He has only 6 available printing heads so  I decided to separate it to cmyk process with white underbase.

Unfortunately, this design has many color shades which are not reproducible with CMYK. Gray areas show these problematic shades – gamut warning!.

This is a separated design to the cmyk process. I decided to add one light Pantone blue color to achieve some light blue shades.

This is already printed final design.

Color separation process

color separation process

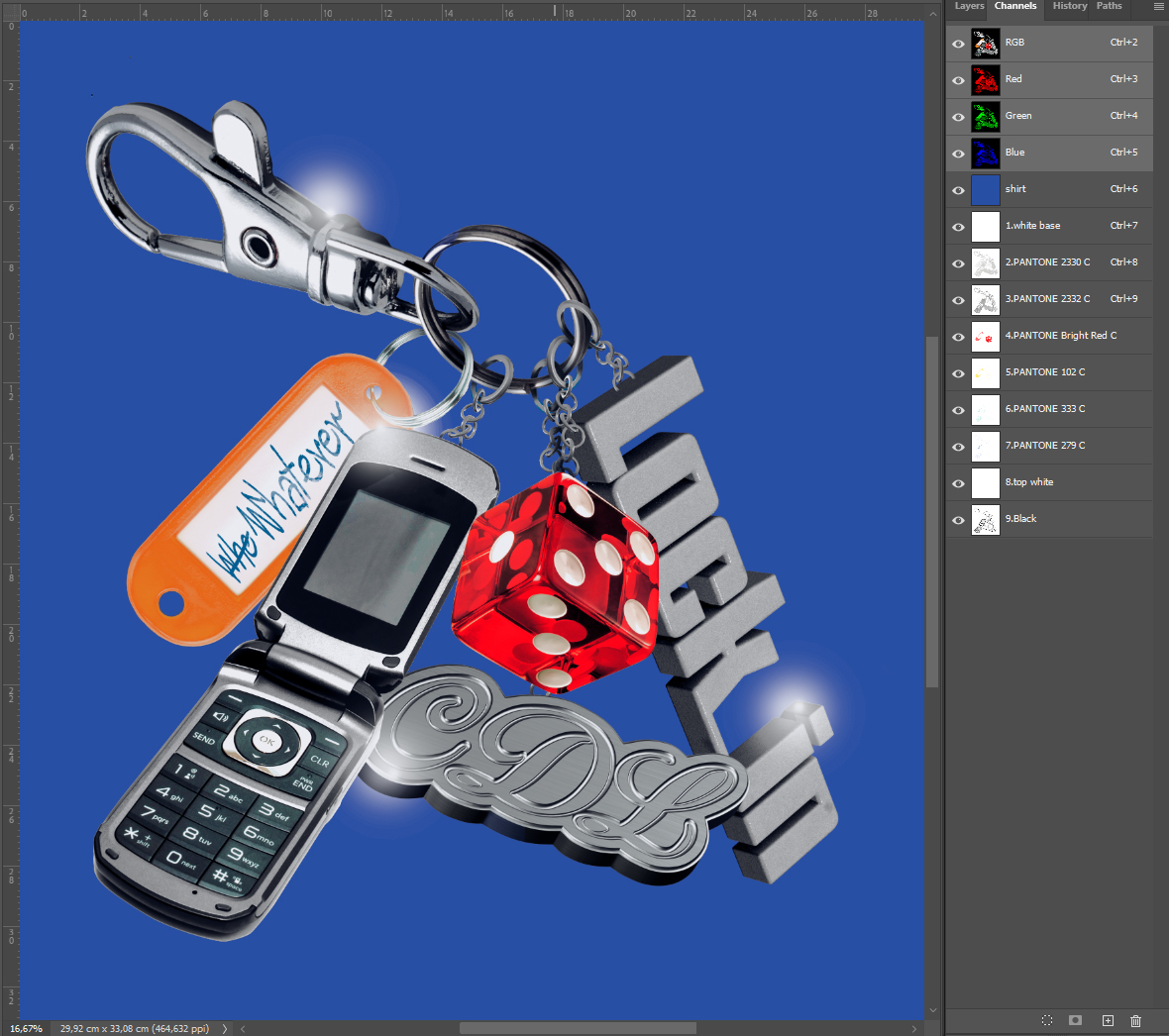

9 colors design
color separation process
10 colors separation
color separation process
next 11 colors job for Sampro
color separation process
6 colors job
color separation process
my new 7 colors design separated for Wenta Print
color separation process
CMYK separation plus one Pantone blue color
color separation process
6 color print
